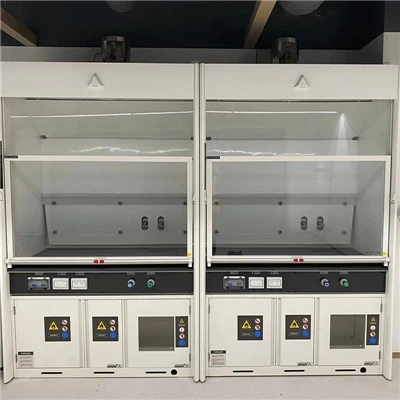

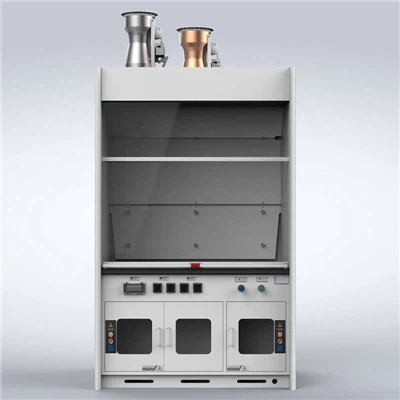

Standard Fume Hood
The fume hood is a kind of ventilation equipment currently in use. It is suitable for the process equipment of air-conditioning workshops.
Description
Product Description
Standard Fume Hood is a very common ventilation device, which is widely used in electronics, chemical industry, machinery, medicine, and other industries, as well as universities and laboratories. It can prevent various harmful substances from causing damage to the experimental environment or operators. Its structure is scientific and reasonable, and its shell is made of a 1.0mm cold-rolled steel plate after anti-rust treatment and electrostatic spraying, with good finish and corrosion resistance. The high-strength panel greatly improves the safety of the equipment. At the same time, the window at the front of the cabinet is made of toughened glass, which can provide good vision and safety.
Features
The front window of Standard Fume Hood can be electrically controlled by buttons, and you can set it at any height. If the power is off, it will automatically lock. At the same time, the glass has a certain slope (8 °), so it can provide a more reasonable angle of view and make operators easier. There are multiple cabinets and sockets outside the equipment, so it can be used to store common items and facilitate the connection of electrical appliances. The control panel is not only simple and clear but also has complete functions. The operator can quickly complete the function adjustment. In addition, the removable panel further reduces the difficulty of maintenance.
Product Parameter
|
External dimensions ≥ (L×D×H) |
1800mm×840mm×2150mm; |
|
Internal dimensions ≥ (L×D×H) |
1680mm×730mm×745mm. |
|
Height from table top to ground |
750mm |
|
Air velocity of suction port |
0.3～0.8m/s; |
|
System exhaust volume |
1210 m3/h |
|
Rated power |
500W |
|
Noise level |
≤65dB (A) |
|
Illumination |
≥400lx |
|
The height of the front window glass opening |
520mm |
|
UV lamp power |
30W |
|
LED fluorescent lamp power |
16W |
|
Fan model |
Fanshida FH355A fan, speed: 1400 RPM, flow: 2550 m3/h, power 195W |
|
Weight |
gross weight 340KG net weight 310KG |
|
Number of users |
2-3 people |
Product Advantages
1. Anti-aging and long life: under normal circumstances, the Standard Fume Hood can be used for more than 15 years.
2. Low noise: The noise of this fume hood is about 3 decibels lower than that without sound-absorbing facilities. When necessary, it is better to install a silencer on the ventilation pipe.
3. Neat appearance: The appearance is beautiful and generous, easy to clean, so that the fume hood has the effect of beautifying the environment. Residual corrosive gas can be evacuated to protect the service life of the equipment.
4. Easy to use: The fume hood is transported to the site, installed with a fan, and connected to the power supply, which is very convenient.
5. Easy to assemble and customizable specifications: can be combined arbitrarily, such as two or three. Specific fume hoods can be customized according to designer and user requirements.
