Hign Standard Class Ii Biosafety Cabinet Laminar Flow Biosafety Cabinet
Hign Standard Class ii Biosafety Cabinet Laminar Flow Biosafety Cabinet AIR-PROTECTION EQUIPMENT BiosafetyCabinet(Class/ClassI/ClassI10) Laminar Flow cabinet, Fume Hood Clean Booth Dispensing Booth Pathology Workstation,Biological lsolation Chamber, Chicken isolator, Ain purifier. Advantage of...
Description
Hign Standard Class ii Biosafety Cabinet Laminar Flow Biosafety Cabinet
AIR-PROTECTION EQUIPMENT
BiosafetyCabinet(Class/ClassI/ClassI10) Laminar Flow cabinet, Fume Hood Clean Booth Dispensing Booth Pathology Workstation,Biological lsolation Chamber, Chicken isolator, Ain purifier.

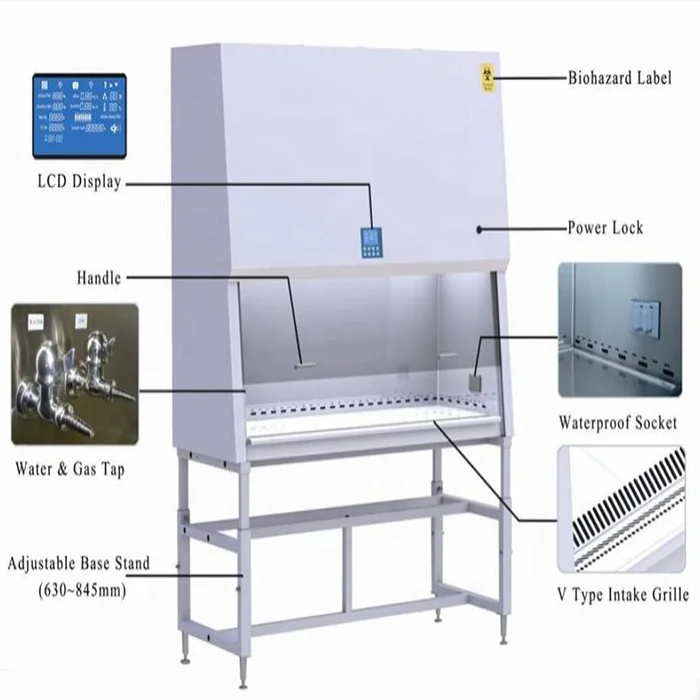

Advantage of Biological Safety Cabinet:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
Technical Parameters of Biological Safety Cabinet:
|
Model |
BSC-1200ⅡA2-Z |
|
Internal size(W*D*H) |
1100*540*600mm |
|
External size(W*D*H) |
1200*750*2200mm |
|
Tested Opening |
Safety height:200mm(8") |
|
Working Opening |
400mm(16") |
|
Inflow Velocity |
0.53 ±0.025 m/s |
|
Down Flow Velocity |
0.33 ±0.025 m/s |
|
HEPA Filter |
Two ,99.999% efficiency at 0.3 μm.Filter life indicator. |
|
Front Window |
Moterized.5mm toughened glass.Anti UV. |
|
Two Sides Window |
5mm toughened glass |
|
Noise |
EN12469≤58dB/NSF49≤ 61 dB |
|
UV lamp |
30 W*1 UV timer,UV life indicator, Emission of 253.7nanometers for most efficient decontamination |
|
Fluorescent Lamp |
21 W*2 |
|
Illumination |
≥1000 lux |
|
Consumption |
760 W |
|
Waterproof Socket |
Two ; total load of two sokets : 500W |
|
Display |
LCD Display:exhaust filter and downflow filter pressure,filter and UV lamp working time,inflow and downflow velocity,filter life,humidity and temperature,system working time etc. |
|
Control Sys tem |
Microprocessor |
|
Airflow System: |
70% air recirculation, 30% air exhaust |
|
Visual and audio alarm |
Filter replacement,window over height ,abnormal airflow velocity |
|
Material |
Work table:Stainless steel; Two sides:Toughened glass; Body:Cold-rolled steel with anti-bacteria powder coating |
|
Work surface height |
750 mm |
|
Caster |
Universal caster with brake and leveling feet |
|
Power Supply |
AC220V± 10%,50/60HZ;110V±10%,60HZ |
|
Standard Configuration |
Fluorescent lamp,UV lamp *2,Base stand,Remote control ,Foot switch , Drain valve, Water proof sokets*2 |
|
Optional accessory |
Water and gas tap |
|
Gross weight |
200 kg |
|
Package Size(W*D*H) |
1390*1000*1650mm |
https://youtu.be/Ds_HqvHiOVc
