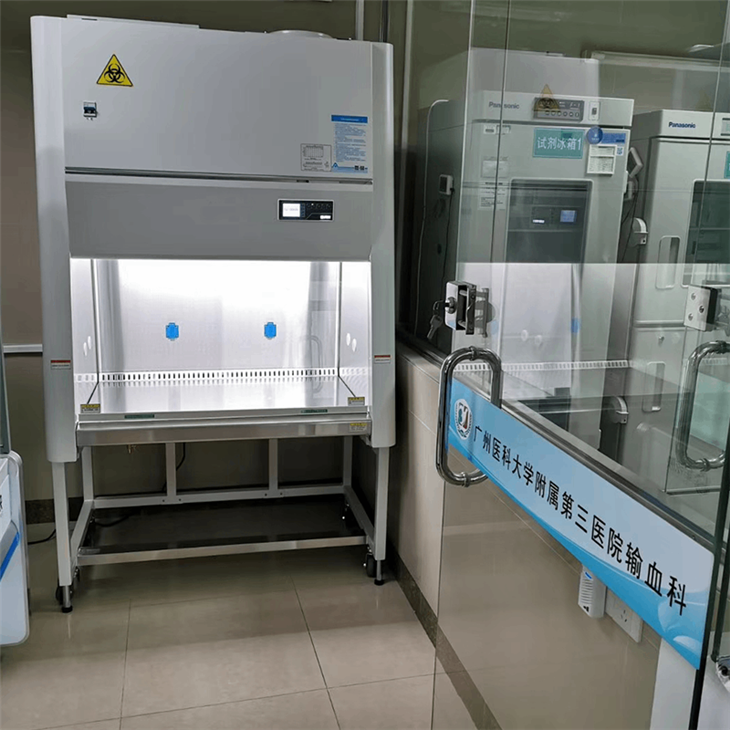

NSF Biosafety Cabinet Class II A2
The working principle of the A2 type two biological safety cabinet: the air enters the negative pressure air duct from the front fresh air outlet and is fully mixed with the air in the cabinet, then is sent to the static pressure box by the fan
Description
Product Description
Our NSF Biosafety Cabinet Class II A2 is a closed working space with ventilation hood, designed to contain pathogenic microorganisms in the process of microorganisms. It aims to minimize the handling of highly infectious microbial agents and similar dangerous operations. At the same time, it is equipped with high-quality filters, which can purify the air flowing out of the cabinet, ensure reliable operation, durability and structural stability, and provide maximum protection for the environment and workers.
Features
1. The ultra-high efficiency ULPA air filter used in this NSF Biosafety Cabinet Class II A2 can provide up to 99.999% retention efficiency for particles between 0.1-0.3 microns, effectively ensure the effectiveness of cleaning, and provide good guarantee for people.
2. It is formed by a single steel plate as a whole, without joints or screws on the surface, so it can avoid dirt and dirt, and is easy to clean and disinfect.
3. Its ergonomic front tilt design improves the operator's comfort, and the tilt control panel brings more convenience to people's operation.
Product Parameter
External Size | 1087*775*2265 |
Internal Size | 910*600*660 |
Packing Size | 1250*1080*1840 |
Weight | 270KG |
Material | Work Zone:304 stainless steel; Main Body: Cold-rolled steel with anti-bacteria poeder coating. |
Work Surface Height | 750mm |
Max Opening | 550mm |
Inflow Velocity | 0.53m/s (349m³/h,587m³/h,824m³/h); |
Downflow Velocity | 0.33m/s, |
HEPA Filter | H14,99.999% efficiency at 0.3um |
Front Window | Motorized, Side and Front Winds:5mm toughened glass,anti UV |
Noise | EN12469<=58dB / NSF49<=61dB |
UV Lamp | 30W*1 |
Illumination | >=1000Lux |
Waterproof Socket | Two,total load<=500W |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, ystem working time etc. |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and Audio Alarm | Filter Replacement, window over height, abnormal air flow velocity. |
Caster | Universal caseter with leveling feet |
Power Supply | 110V±10%, 60Hz |
Standard Accessory | LED lamp, UV lamp*2, Base stand, Remote control, ss water &gas taps, Foot switch, Drain valve, Waterproof sockets*2 |
